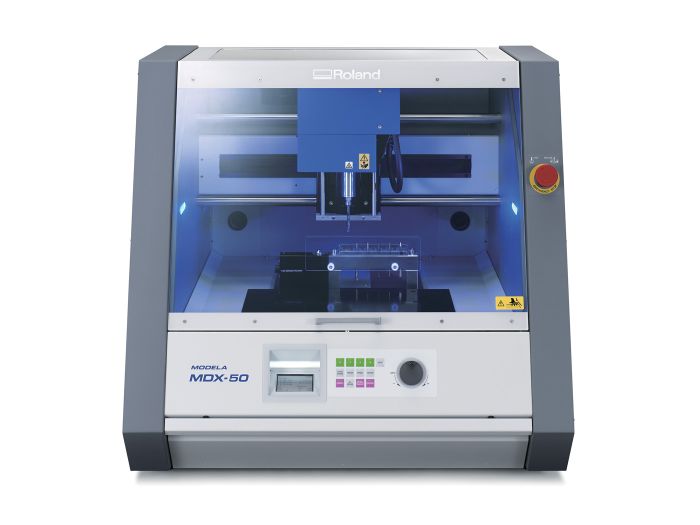

Roland MDX-50
BENCHTOP CNC MILL
Descripción del producto
La fresadora CNC de sobremesa MDX-50 combina un fresado preciso y automatizado con una facilidad de uso inigualable. Solución ideal para tiradas cortas y prototipos, la MDX-50 reduce el tiempo de operación y simplifica la producción para que usuarios de todos los niveles puedan fresar piezas funcionales con una calidad increíble en una amplia gama de materiales.
Especificaciones técnicas
| Modelo | MDX-50 | |
| Acceptable materials | Resins such as chemical wood and modelling wax, wood (metal not supported) | |
| Operating range | X: 400 mm (15.80 in)Y: 305 mm (12 in) Z: 135 mm (5.3 in) | |
| Tamaño de la mesa | W: 400 mm (15.8 in) D: 305 mm (12 in) | |
| Loadable workpiece size | X: 400 mm (15.8 in)Y: 305 mm (12 in) Z: 100 mm (3.9 in) | |
| Axis drive | Stepper Motor | |
| Feed rate | XY: 7 to 3600 mm/minZ: 7 to 3000 mm/min | |
| Resolución de software | RML-1: 0.001 mm/step NC code: 0.001 mm/step | |
| Resolución mecánica | 0.01 mm/step (0.39 mil/step; half step) | |
| Spindle motor | Brushless DC motor | |
| Spindle rotation speed | 4500 ～ 15000 rpm | |
| Tool chuck | Collet | |
| Tool Change Method | AutomaticTool Changer (ATC) | |
| ATC Magazine Capacity | 5 Tools + 1 Detection pin (6 Position Capacity) | |
| Tool Shank Diameter | 6 mm, 4 mm using ZH-4 tool holder, 3 mm using ZH-3 tool holder | |
| Dust box dimmensions | 600 x 700 x 95 mm | |
| Interfaz | USB | |
| Power requirements (VAC/A) | AC 100 to 240 V ±10%, 50/60 Hz, 1.2 A(Overvoltage Category: II, IEC 60664-1) | |
| Consumo eléctrico | Approx. 95 W | |
| Acoustic noise level (dB) | During operation | 60 dB (A) or less (when not cutting) |
| During standby | 45 dB (A) or less | |
| External Dimensions | 760 (W) × 900 (D) × 732 (H) mm (29.92 × 35.43 × 28.82 in) | |
| Peso | 122 kg (269 lb) | |
| Installation environment | Indoor use, Altitude: Up to 2000 m (6562 ft.), Temperature: 5 to 40 ℃ (41 to 104°F), Humidity: 35 to 80 % (no condensation), Ambient pollution degree: 2 (as specified by IEC 60664-1), Short-term temporary overvoltage: 1440 V, Long-term temporary overvoltage: 490 V | |
| Incluido | Power cable, USB cable, manual, Roland DG Software Package CD, detection pin, hexagonal screwdriver, hexagonal wrench, wrench, tool holder, tool positioner, Z0 sensor |
