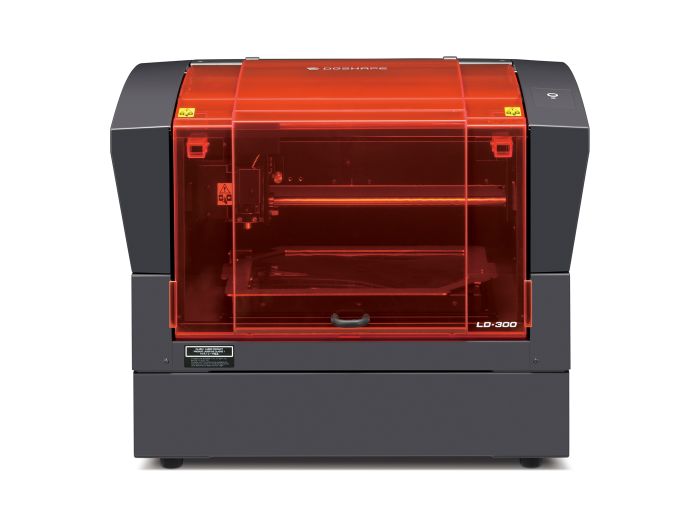

Roland LD-300
305(W)x230(D)mm Laser Foil Decorator
Descripción del producto
Simplemente introduce tu texto personalizado, sube un gráfico y con precisión y facilidad tus diseños únicos se transfieren sobre cuero, policarbonato, acrílico y otros plásticos. Fáciles de usar y seguros de operar, estos dispositivos láser Clase 1 transfieren láminas metalizadas por calor sobre regalos, artículos promocionales, merchandising y mucho más. Con nuestras decoradoras láser, transformarás objetos corrientes en piezas extraordinarias en minutos.
Especificaciones técnicas
| Modelo | LD-300* | |
| Imprintable materials** | Acrylic, Polycarbonate, Polypropylene, Polystyrene, ABS, Leather, Polyurethane, PVC and Paper (Woodfree paper, Art paper, Coated paper). | |
| Loadable material width and height/thickness | With base table: 323 (W) x 267 (D) x 50 (H) mmWithout base table: 281 (W) mm x 213 (D) x 216 (H) mm | |
| Design options | Vector/outline, region fill (scan line, island fill), text, illustration | |
| Imprint area | Max. | For objects up to 50mm (H): 305 (W) x 230 (D) mm |
| For objects up to 216mm (H): 281 (W) x 213 (D) mm | ||
| Recommended: | For objects up to 50mm (H): 275 (W) x 196 (D) mm | |
| For objects up to 216mm (H): 281 (W) x 213 (D) mm | ||
| Resolution | 318 dpi (text), 1270 dpi (vector) | |
| Direction of transcription | Unidirectional imprinting or bidirectional imprinting (selectable with Windows driver) | |
| Print speed | 24 mm/s (default), 48 mm/s (maximum) | |
| Interfaz | USB | |
| Power requirements | Dedicated AC adapter: | AC 100 to 240 V ±10%, 50/60Hz |
| Main unit: | DC 19V, 1.0A | |
| Consumo eléctrico | Approx. 23W | |
| Nivel de ruido acústico | 70 dB (A) or less | |
| Environment | Temperature | 11 to 30 °C (50 to 86 °F) |
| Humidity | 35 to 80% (no condensation) | |
| Dimensiones | 616 (W) x 591 (D) x 496 (H) mm | |
| Peso | 46 kg | |
| Light source | For imprinting (foil transfer) | Class 4 laser*; wavelength: 450nm; dispersion: 23 degrees; pulse width and repeatability: 137.5 μ sec, 4kHz; max. output:1.6W |
| For positioning | Class 1 laser, wavelength: 655nm | |
| Safety devices | Interlock | When the cover opens, the laser power supply turns off |
| Cover | Light-blocking cover | |
| Incluido | Software Package CD, AC adapter, power cable, USB cable, setup guide, material retainer, film frame, etc. |
